| 說明 | Description |
Unit
|

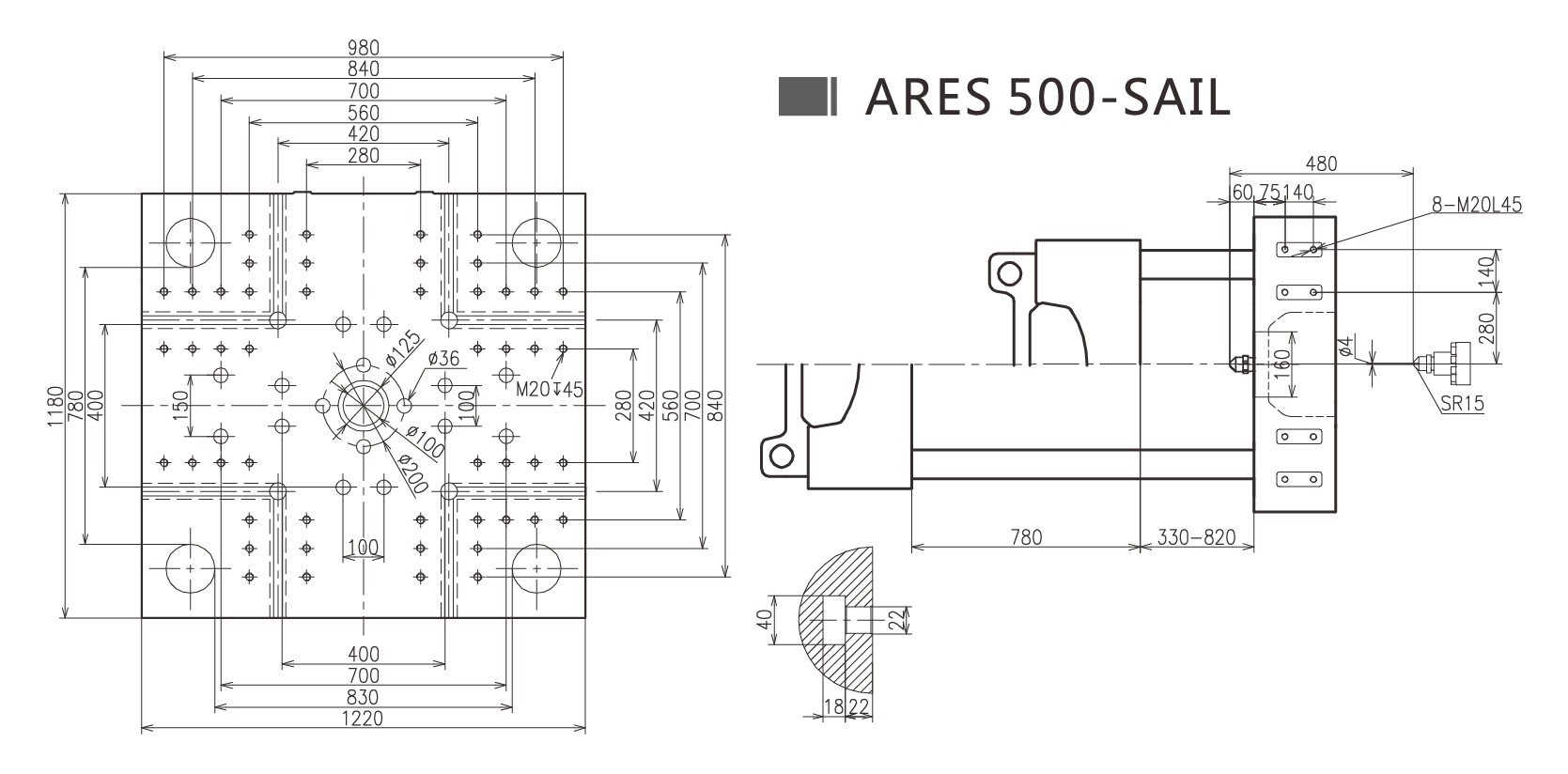

ARES 500-SAIL
|
|||
| 射膠系統 | Injection Unit | |||||
| 螺桿直徑 | Screw diameter |
mm
|
80
|
85
|
90
|
100
|
| 螺桿長徑比 | Screw L/D ratio |
—
|
22.3
|
21
|
19.8
|
17.9
|
| 理論射膠容積 | Theoretical shot volume |
cm3
|
2061
|
2327
|
2608
|
3220
|
| 射膠量(PS) | Shot weight (PS) |
g
|
1896
|
2140
|
2400
|
2963
|
| 射膠壓力 | lnjection pressure |
MPa
|
202
|
179
|
160
|
130
|
| 注射速率 | Injection rate |
g/s
|
503
|
535
|
562
|
625
|
| 螺桿行程 | Screw stroke |
mm
|
410
|
|||
| 螺桿轉速 | Screw speed |
rpm
|
143
|
|||
| 鎖模系統 | Clamping Unit | |||||
| 鎖模力 | Clamping force |
kN
|
5000
|
|||
| 推力座行程 | Opening stroke |
mm
|
780
|
|||
| 導柱內距(水平×垂直) | Space between tie bars (HxV) |
mm
|
830 x 780
|
|||
| 模板最大距離 | Max. daylight |
mm
|
1590
|
|||
| 最薄-最厚 | Mold thickness (Min-Max) |
mm
|
330 – 820
|
|||
| 頂針行程 | Ejector stroke |
mm
|
200
|
|||
| 頂針推力 | Ejector force |
kN
|
150
|
|||
| 頂針桿根數 | Ejector number |
pcs
|
17
|
|||
| 動力/電熱 | Power/heating unit | |||||
| 系統壓力 | System pressure |
MPa
|
16
|
|||
| 伺服電機功率 | Motor pump capacity |
kW
|
62
|
|||
| 電熱功率 | Heating capacity |
kW
|
43
|
|||
| 溫度控制區數 | Number of temperature control zones |
—
|
5 + Nozzle
|
|||
| 其它 | Others | |||||
| 料斗容積 | Hopper capacity |
L
|
100
|
|||
| 油箱容量 | Oil tank capacity |
L
|
700
|
|||
| 機身尺寸(長×寬×高) | Machine dimensions (L×W×H) |
m
|
8.8 x 2 x 2.6
|
|||
| 機重 | Machine weight |
T
|
21
|
|||
